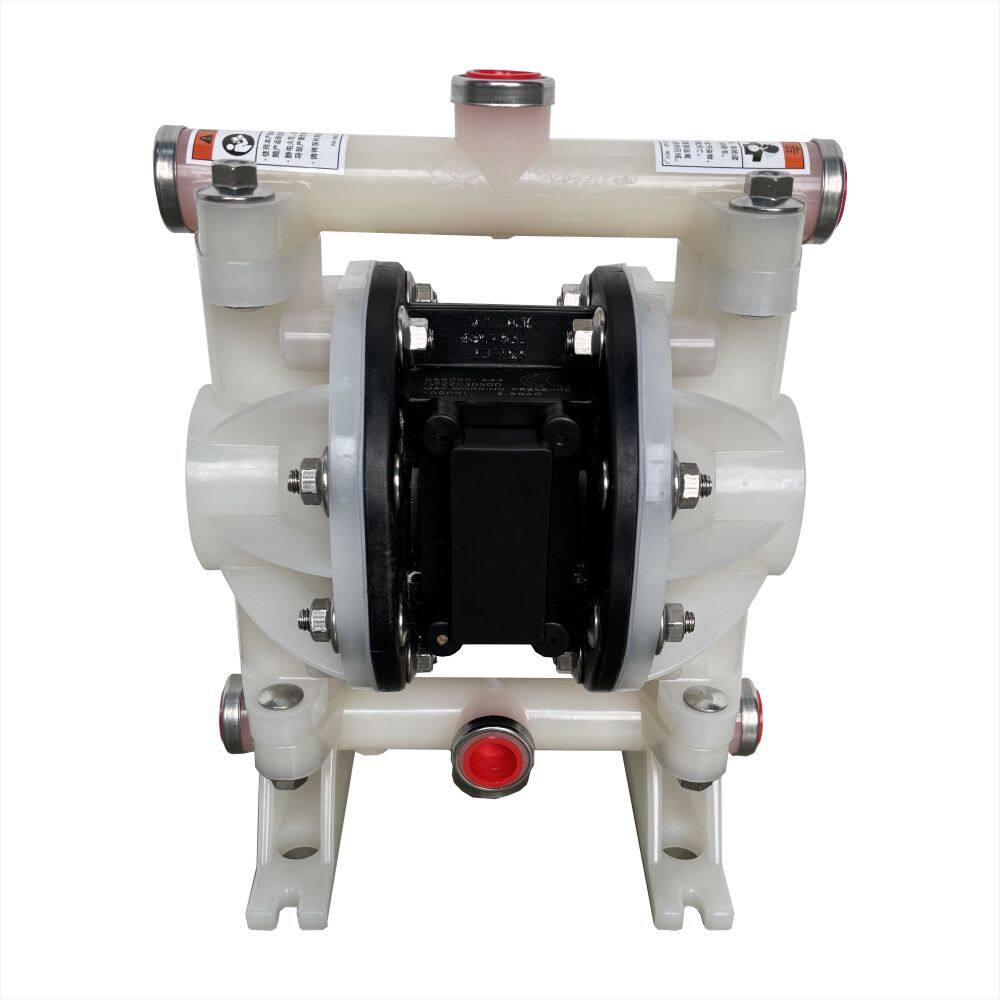

66605k-444 Compatible With ARO Pump
Completely interchangeable with ARO pumps parts
ARO® is a registered trade mark of Ingersoll Rand Company.
Pumpkits® offers parts that fit ARO products, but they are not genuine ARO parts.
All names, numbers, symbols and descriptions are used for reference purposes only.
It is not implied that any part listed is the product of these manufacturers.
| Fluid Cap/Manifold Material | Colorless PVDF (1-piece manifold) |
|---|---|
| Seat Material | PVDF |
| Ball Material | PTFE |
| Diaphragm Material | PTFE/Santoprene |
| Pump Type | Non-Metallic, Air Operated, Double Diaphragm |
| Material | Aluminum |
| Max Air Inlet Pressure | 8.3 bar (120 psi) |
| Max Material Inlet Pressure | 0.69 bar (10 psi) |
| Max Outlet Pressure | 8.3 bar (120 psi) |
| Max Flow Rate | 47 gpm (177.9 lpm) |
| Displacement/Cycle @ 100 psig (Standard Diaphragm) | 0.17 gal (.64 lit) |
| Displacement/Cycle @ 100 psig (Composite PTFE Diaphragm) | 0.14 gal (.525 lit) |
| Max Solid Size | 1/8″ (3.2 mm) |
| Max Temperature Limits (F) | 10° to 200° |
| Max Temperature Limits (C) | -12° to 93° |
| Noise Level @ 70 psi, 60 cpm | 64.5 dB(A) |
| Size | 1″ (25.4 mm) |
