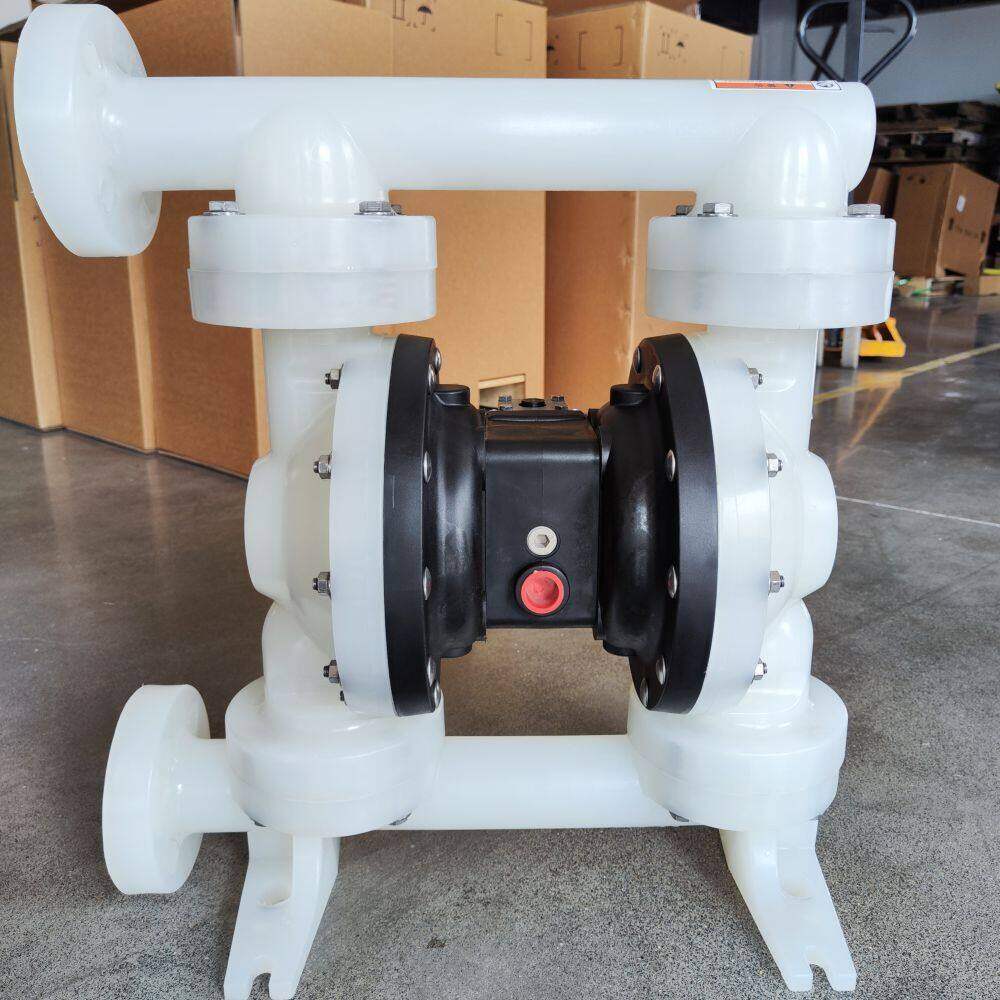

PD15P-FPS-PTT AODD Pumps Compatible With ARO
Completely interchangeable with ARO pumps parts
ARO? is a registered trade mark of Ingersoll Rand Company.
Pumpkits? offers parts that fit ARO products, but they are not genuine ARO parts.
All names, numbers, symbols and descriptions are used for reference purposes only.
It is not implied that any part listed is the product of these manufacturers.
| Electronic Interface | None |
|---|---|
| Center Section Material | Polypropylene |
| Connection Type | ANSI |
| Fluid Cap & Manifold Material | Polypropylene |
| Hardware Material | Stainless Steel |
| Seat Material | Polypropylene |
| Ball Material | PTFE |
| Diaphragm Material | PTFE/Santoprene |
| Pump Type | Non-Metallic, Air Operated, Double Diaphragm |
| Max Air Inlet Pressure | 8.3 bar (120 psi) |
| Max Material Inlet Pressure | 0.69 bar (10 psi) |
| Max Outlet Pressure | 8.3 bar (120 psi) |
| Max Flow Rate | 123.1 gpm (465.9 lpm) |
| Displacement/Cycle @ 100 psig | 0.617 gal. (2.34 lit.) |
| Max Solid Size | 1/4″ (6.4 mm) |
| Max Temperature Limits | -40 to 350?? F (-40 to 177?? C) |
| Mounting Dimension | 220.7″ x 379.4″ (8.687 mm x 14.937 mm) |
| Noise Level @ 70 psi, 60 cpm | 81.0 db(A) |
| Ratio | 1:1 |
| Material inlet/outlet (Female) | 1-1/2″ ANSI/DIN Flange |
| Air Inlet (Female) | 1/2- 14 NPT |
| Air Exhaust (Female) | 3/4- 14 NPT |
| Size | 1.5″ (38.1 mm) |
